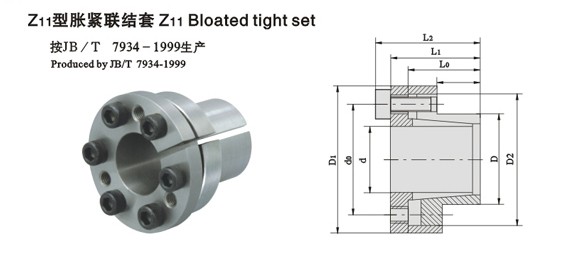

规 格 |
基本尺寸 |
内六角螺钉 |
额定负荷 |
胀套与轴结合面上的压力Pf |
螺钉的拧紧力矩MA |
重量
KG |
|
L |
L0 |
L1 |
L2 |
D1 |
D2 |
d1 |
N |
轴向力Ft |
转矩Mt |
|
mm |
|
12×18 |
14 |
23 |
26 |
30 |
32 |
28 |
M4×10 |
4 |
10.0 |
0.058 |
105 |
5 |
0.08 |
|
13×23 |
14 |
23 |
26 |
30 |
38 |
34 |
M4×10 |
4 |
10.0 |
0.063 |
80 |
5 |
0.13 |
|
14×23 |
14 |
23 |
26 |
30 |
38 |
34 |
M4×10 |
4 |
10.0 |
0.068 |
80 |
5 |
0.13 |
|
15×24 |
16 |
29 |
36 |
42 |
45 |
40 |
M6×18 |
4 |
17.0 |
0.127 |
115 |
17 |
0.26 |
|
16×24 |
16 |
29 |
36 |
42 |
45 |
40 |
M6×18 |
4 |
17.0 |
0.136 |
115 |
17 |
0.26 |
|
17×26 |
18 |
31 |
38 |
44 |
47 |
42 |
M6×18 |
4 |
21.6 |
0.180 |
125 |
17 |
0.27 |
|
18×26 |
18 |
31 |
38 |
44 |
47 |
42 |
M6×18 |
4 |
21.6 |
0.196 |
126 |
17 |
0.27 |
|
19×27 |
18 |
31 |
38 |
44 |
49 |
45 |
M6×18 |
4 |
21.6 |
0.206 |
122 |
17 |
0.29 |
|
20×28 |
18 |
31 |
38 |
44 |
50 |
44 |
M6×18 |
4 |
21.6 |
0.216 |
118 |
17 |
0.30 |
|
22×32 |
25 |
38 |
45 |
51 |
54 |
48 |
M6×18 |
4 |
21.6 |
0.245 |
74 |
17 |
0.38 |
|
24×34 |
25 |
38 |
45 |
51 |
56 |
50 |
M6×18 |
4 |
21.6 |
0.265 |
70 |
17 |
0.41 |
|
25×34 |
25 |
38 |
45 |
51 |
56 |
50 |
M6×18 |
4 |
21.6 |
0.274 |
70 |
17 |
0.45 |
|
28×39 |
25 |
38 |
45 |
51 |
61 |
55 |
M6×18 |
6 |
32.3 |
0.461 |
91 |
17 |
0.47 |
|
30×41 |
25 |
38 |
45 |
51 |
62 |
57 |
M6×18 |
6 |
32.3 |
0.500 |
86 |
17 |
0.48 |
|
32×43 |
25 |
38 |
45 |
51 |
65 |
59 |
M6×18 |
6 |
32.3 |
0.529 |
82 |
17 |
0.52 |
|
35×47 |
32 |
45 |
52 |
58 |
69 |
62 |
M6×18 |
8 |
44.1 |
0.774 |
78 |
17 |
0.63 |
|
38×50 |
32 |
45 |
52 |
58 |
72 |
66 |
M6×18 |
8 |
44.1 |
0.843 |
74 |
17 |
0.67 |
|
40×53 |
32 |
45 |
52 |
58 |
75 |
69 |
M6×18 |
8 |
44.1 |
0.882 |
70 |
17 |
0.73 |
|
42×55 |
32 |
45 |
52 |
58 |
78 |
71 |
M6×18 |
8 |
44.1 |
0.931 |
68 |
17 |
0.78 |
|
45×59 |
45 |
62 |
70 |
78 |
86 |
80 |
M8×22 |
8 |
82.3 |
1.850 |
82 |
41 |
1.23 |
|
48×62 |
45 |
62 |
70 |
78 |
87 |
81 |
M8×22 |
8 |
82.3 |
1.970 |
78 |
41 |
1.24 |
|
50×65 |
45 |
62 |
70 |
78 |
92 |
86 |
M8×22 |
8 |
82.3 |
2.060 |
74 |
41 |
1.40 |
|
55×71 |
55 |
72 |
80 |
88 |
98 |
92 |
M8×22 |
9 |
92.1 |
2.550 |
63 |
41 |
1.70 |
|
60×77 |
55 |
72 |
80 |
88 |
104 |
98 |
M8×22 |
9 |
92.1 |
2.770 |
58 |
41 |
1.90 |
|
65×84 |
55 |
72 |
80 |
88 |
111 |
105 |
M8×22 |
9 |
92.1 |
3.010 |
53 |
41 |
2.21 |
|
70×90 |
65 |
86 |
96 |
106 |
119 |
113 |
M10×25 |
9 |
147 |
5.150 |
67 |
83 |
3.05 |
|
75×95 |
65 |
86 |
96 |
106 |
126 |
119 |
M10×25 |
9 |
147 |
5.490 |
63 |
83 |
3.32 |
|
80×100 |
65 |
86 |
96 |
106 |
131 |
125 |
M10×25 |
12 |
196 |
7.840 |
79 |
83 |
3.50 |
|
85×106 |
65 |
86 |
96 |
106 |
137 |
131 |
M10×25 |
12 |
196 |
8.330 |
75 |
83 |
3.81 | |
