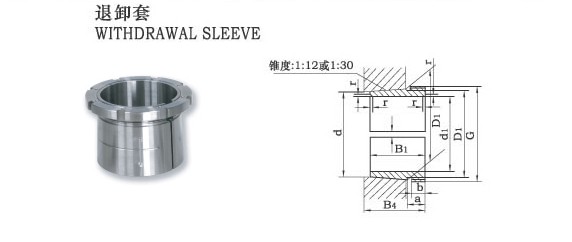

退卸套
    退卸套
    型号 螺纹 尺 寸（mm） 螺母型号 适用轴承
    d d1 B1 调心滚子轴承
    AH3934 M180X3 170 160 59 KML36 23934K
    AH3936 M190X3 180 170 66 KML38 23936K
    AH3938 M200X3 190 180 66 KML40 23938K
    AH3940 Tr210X4 200 190 77 KML42 23940K
    AH3944 Tr230X4 220 200 77 KML46 23944K
    AH3948 Tr250X4 240 220 77 KML50 23945K
    AH3952 Tr280X4 260 240 94 KML56 23952K
    AH3956 Tr300X4 280 260 94 KML60 23956K
    AH3960 Tr320X5 300 280 112 KML64 23960K
    AH3964 Tr340X5 320 300 112 KML68 23964K
    AH3968 Tr360X5 340 320 112 KML72 23968K
    AH3972 Tr380X5 360 340 112 KML76 23972K
    AH3976 Tr400X5 380 360 130 KML80 23976K
    AH3980 Tr420X5 400 380 130 KML84 23980K
    AH3984 Tr440X5 420 400 130 KML88 23984K
    AH3988 Tr460X5 440 420 1454 KML92 23988K
    AH3992 Tr480X5 460 440 145 KML96 23992K
    AH3996 Tr500X5 480 460 158 KML/500 23996K
    AH39/500 Tr530X6 500 480 162 KML/530 239/500K
    AH39/530 Tr560X6 530 500 175 KML/560 239/530K
    AH39/560 Tr600X6 560 530 180 KML/600 239/560K
    AH39/600 Tr630X6 600 570 192 KML/630 239/600K
    AH39/630 Tr670X6 630 600 210 KML/670 239/630K
    AH39/670 Tr710X7 670 630 216 KML/710 239/670K
    AH39/710 Tr750X7 710 670 228 KML/750 239/710K
    AH39/750 Tr800X7 750 710 234 KML/800 239/750K
    AH39/800 Tr850X7 800 750 245 KML/850 239/800K
    AH39/850 Tr900X7 850 800 258 KML/900 239/850K
    AH39/900 Tr950X8 900 850 265 KML/950 239/900K
    AH39/950 Tr1000X8 950 900 282 KML/1000 239/950K
    AH39/1000 Tr1060X8 1000 950 296 KML/1060 239/1000K
    AH39/1060 Tr1120X8 1060 1000 310 KML/1120 239/1060K

    AH241系列退卸套基本尺寸和参数

    型号
    尺寸(mm)
    适用的轴承号
    重量(kg)
    d
    d1
    B3
    G
    调心球子轴承
    AH24122
    110
    105
    82
    M115×2
    24112K
    AH24124
    120
    115
    93
    M130×2
    24124K
    AH24126
    130
    125
    94
    M140×2
    24126K
    AH24128
    140
    135
    99
    M150×2
    24128K
    AH24130
    150
    145
    115
    M160×3
    24130K
    AH24132
    160
    150
    124
    M170×3
    24132K
    AH24134
    170
    160
    125
    M180×3
    24134K
    AH24136
    180
    170
    134
    M190×3
    24136K
    AH24138
    190
    180
    146
    M200×3
    24138K
    AH24140
    200
    190
    158
    Tr210×4
    24140K
    AH24144
    220
    200
    170
    Tr230×4
    24144K
    AH24148
    240
    220
    180
    Tr260×4
    24148K
    AH24152
    260
    240
    202
    Tr280×4
    24152K
    AH24156
    280
    260
    202
    Tr300×4
    24156K
    AH24160
    300
    280
    224
    Tr320×5
    24160K
    AH24164
    320
    300
    242
    Tr340×5
    24164K
    AH24168
    340
    320
    269
    Tr360×5
    24168K
    AH24172
    360
    340
    269
    Tr380×5
    24172K
    AH24176
    380
    360
    271
    Tr400×5
    24176K
    AH24180
    400
    380
    278
    Tr420×5
    24180K
    AH24184
    420
    400
    310
    Tr440×5
    24184K
    AH24188
    440
    420
    310
    Tr460×5
    24188K
    AH24192
    460
    440
    332
    Tr480×5
    24192K
    AH24196
    480
    460
    340
    Tr500×5
    24196K
    AH214/500
    500
    480
    360
    Tr530×6
    241/500K30
    AH214/530
    530
    500
    370
    Tr560×6
    241/530K30
    AH214/560
    560
    530
    393
    Tr600×6
    241/560K30
    AH214/600
    600
    570
    413
    Tr630×6
    241/600K30
    AH214/630
    630
    600
    440
    Tr670×6
    241/630K30
    AH214/670
    670
    630
    452
    Tr710×7
    241/670K30
    AH214/710
    710
    670
    483
    Tr750×7
    241/710K30
    AH214/750
    750
    710
    520
    Tr800×7
    241/750K30
    AH214/800
    800
    750
    525
    Tr850×7
    241/800K30
    AH214/850
    850
    800
    560
    Tr900×7
    241/850K30
    AH214/900
    900
    850
    575
    Tr950×8
    241/900K30
    AH214/950
    950
    900
    605
    Tr1000×8
    241/950K30
    AH214/1000
    1000
    950
    645
    Tr1060×8
    241/1000K30
    AH214/1060
    1060
    1000
    665
    Tr1120×8
    241/1060K30
